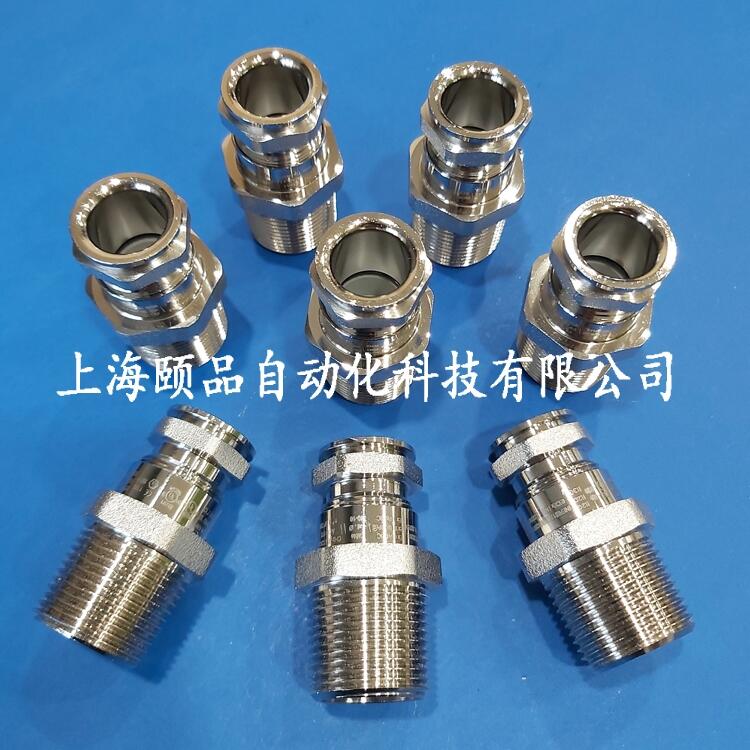

eaton-库柏cooper-capri非铠防爆格兰ade-1f2系列
ade-1f2 - for non-armoured cable
eaton-capri代理商：上海颐品自动化科技有限公司
关键词：eaton防爆格兰，库柏cooper防爆格兰，capri防爆格兰，raxton/redapt防爆连接件
suitable for the following cable types:
1、non-armoured cable  2、marine shipboard cable;  3、type p cable tray cable
operating temperature: -60°c to 140°c
material: nickel-plated brass for superior corrosion resistance.
316l stainless steel, bronze and aluminum options available.
it is recommended that a suitable lubricant is used on all threads of stainless steel and aluminum versions. ingress protection (ip): ip66 / ip68 according to the b of attachment and the condition of the equipment area, see page 13.
certifications and compliances: atex certificate no: ineris12atex0032x zones 1 and 2, groups iia, iib and iic zones 21 and 22 groups iiia, iiib and iiic ii2gd / ex db iic / ex eb iic / ex tb iiic ii3g ex nrc iic iecex certificate no: iecex ine 12.0025x zones 1 and 2, groups iia, iib and iic zones 21 and 22, groups iiia, iiib and iic ex db iic / ex eb iic / ex nrc iic / ex tb iiic

订货号	产品系列	材质	产品描述-上海颐品自动化科技有限公司
cap806404v1	cable gland ade 1f2	np.	type 4-m16,    φ4.5-8.5 mm  , l=15 mm
cap806409v1	cable gland ade 1f2	ss.	type 4-m12,    φ4.5-8 mm  , l=15 mm
cap806504v1	cable gland ade 1f2	np.	type 5-m16,    φ7-12 mm  , l=15 mm
cap806509v1	cable gland ade 1f2	ss.	type 5-m16,    φ7-12 mm  , l=15 mm,
cap806594v1	cable gland ade 1f2	np.	type 4-m16,    φ4.5-8.5 mm  , l=15 mm,
cap806599v1	cable gland ade 1f2	ss.	type 4-m16,    φ4.5-8.5 mm  , l=15 mm,
cap806604v1	cable gland ade 1f2	np.	type 6-m20,    φ10-16 mm  , l=15 mm,
cap806609v1	cable gland ade 1f2	ss.	type 6-m20,    φ10-16 mm  , l=15 mm,
cap806664v1	cable gland ade 1f2	np.	type 3-m20,    φ2.75-5.5 mm  , l=15 mm,
cap806669v1	cable gland ade 1f2	ss.	type 3-m20,    φ2.75-5.5 mm  , l=15 mm,
cap806674v1	cable gland ade 1f2	np.	type 4-m20,    φ4.5-8.5 mm  , l=15 mm,
cap806679v1	cable gland ade 1f2	ss.	type 4-m20,    φ4.5-8.5 mm  , l=15 mm,
cap806694v1	cable gland ade 1f2	np.	type 5-m20,    φ7-12 mm  , l=15 mm,
cap806699v1	cable gland ade 1f2	ss.	type 5-m20,    φ7-12 mm  , l=15 mm,
cap806704v1	cable gland ade 1f2	np.	type 7-m25,    φ13.5-20.5 mm  , l=15 mm,
cap806709v1	cable gland ade 1f2	ss.	type 7-m25,    φ13.5-20.5 mm  , l=15 mm,
cap806774v1	cable gland ade 1f2	np.	type 5-m25,    φ7-12 mm  , l=15 mm,
cap806779v1	cable gland ade 1f2	ss.	type 5-m25,    φ7-12 mm  , l=15 mm,
cap806794v1	cable gland ade 1f2	np.	type 6-m25,    φ10-16 mm  , l=15 mm,
cap806799v1	cable gland ade 1f2	ss.	type 6-m25,    φ10-16 mm  , l=15 mm,
cap806804v1	cable gland ade 1f2	np.	type 8-m32,    φ18-27.5 mm  , l=15 mm,
cap806809v1	cable gland ade 1f2	ss.	type 8-m32,    φ18-27.5 mm  , l=15 mm,
cap806904v1	cable gland ade 1f2	np.	type 9-m40,    φ23-34 mm  , l=15 mm,
cap806909v1	cable gland ade 1f2	ss.	type 9-m40,    φ23-34 mm  , l=15 mm,
cap807004v1	cable gland ade 1f2	np.	type 10-m50,    φ29-41 mm  , l=16 mm,
cap807009v1	cable gland ade 1f2	ss.	type 10-m50,    φ29-41 mm  , l=16 mm,
cap807084v1	cable gland ade 1f2	np.	type 11-m50,    φ35-45 mm  , l=16 mm,
cap807089v1	cable gland ade 1f2	ss.	type 11-m50,    φ35-45 mm  , l=16 mm,
cap807204v1	cable gland ade 1f2	np.	type 12-m63,   φ 42-56 mm  , l=17 mm,
cap807209v1	cable gland ade 1f2	ss.	type 12-m63,    φ42-56 mm  , l=17 mm,
cap807304v1	cable gland ade 1f2	np.	type 13-m75,    φ50-65 mm  , l=18 mm,
cap807309v1	cable gland ade 1f2	ss.	type 13-m75,    φ50-65 mm  , l=18 mm,
cap807504v1	cable gland ade 1f2	np.	type 15-m90,    φ66-83 mm  , l=22 mm,
cap807509v1	cable gland ade 1f2	ss.	type 15-m90,    φ66-83 mm  , l=22 mm,
cap807594v1	cable gland ade 1f2	np.	type 14-m90,    φ58-74 mm  , l=22 mm,
cap807599v1	cable gland ade 1f2	ss.	type 14-m90,    φ58-74 mm  , l=22 mm,
cap807604v1	cable gland ade 1f2	np.	type 16-m110,    φ75-93 mm  , l=22 mm,
cap807609v1	cable gland ade 1f2	ss.	type 16-m110,    φ75-93 mm  , l=22 mm,
cap807704v1	cable gland ade 1f2	np.	type 17-m110,   φ85-104 mm  , l=22 mm,
cap807709v1	cable gland ade 1f2	ss.	type 17-m110,    φ85-104 mm  , l=22 mm,
cap808604v1	cable gland ade 1f2	np.	type 6-1/2'',    φ10-15.5 mm  , l=22.2 mm,
cap808609v1	cable gland ade 1f2	ss.	type 6-1/2'',    φ10-15.5 mm  , l=22.2 mm,
cap808664v1	cable gland ade 1f2	np.	type 3-1/2'',    φ2.75-5.5 mm  , l=22.2 mm,
cap808669v1	cable gland ade 1f2	ss.	type 3-1/2'',    φ2.75-5.5 mm  , l=22.2 mm,
cap808674v1	cable gland ade 1f2	np.	type 4-1/2'',    φ4.5-8.5 mm  , l=22.2 mm,
cap808679v1	cable gland ade 1f2	ss.	type 4-1/2'',    φ4.5-8.5 mm  , l=22.2 mm,
cap808694v1	cable gland ade 1f2	np.	type 5-1/2'',    φ7-12 mm  , l=22.2 mm,
cap808699v1	cable gland ade 1f2	ss.	type 5-1/2'',    φ7-12 mm  , l=22.2 mm,
cap808704v1	cable gland ade 1f2	np.	type 7-3/4'',    φ13.5-20.5 mm  , l=22.5 mm,
cap808709v1	cable gland ade 1f2	ss.	type 7-3/4'',    φ13.5-20.5 mm  , l=22.5 mm,
cap808774v1	cable gland ade 1f2	np.	type 5-3/4'',    φ7-12 mm  , l=22.5 mm,
cap808779v1	cable gland ade 1f2	ss.	type 5-3/4'',    φ7-12 mm  , l=22.5 mm,
cap808794v1	cable gland ade 1f2	np.	type 6-3/4'',    φ10-16 mm  , l=22.5 mm,
cap808799v1	cable gland ade 1f2	ss.	type 6-3/4'',    φ10-16 mm  , l=22.5 mm,
cap808804v1	cable gland ade 1f2	np.	type 8-1'',    φ18-26 mm  , l=27.3 mm,
cap808809v1	cable gland ade 1f2	ss.	type 8-1'',    φ18-26 mm  , l=27.3 mm,
cap808904v1	cable gland ade 1f2	np.	type 9-1 1/4'',    φ23-34 mm  , l=28 mm,
cap808909v1	cable gland ade 1f2	ss.	type 9-1 1/4'',    φ23-34 mm  , l=28 mm,
cap809004v1	cable gland ade 1f2	np.	type 10-1 1/2'',    φ29-41 mm  , l=28.5 mm,
cap809009v1	cable gland ade 1f2	ss.	type 10-1 1/2'',    φ29-41 mm  , l=28.5 mm,
cap809204v1	cable gland ade 1f2	np.	type 12-2'',    φ42-53 mm  , l=29.2 mm,
cap809209v1	cable gland ade 1f2	ss.	type 12-2'',    φ42-53 mm  , l=29.2 mm,
cap809294v1	cable gland ade 1f2	np.	type 11-2'',    φ35-48 mm  , l=29.2 mm,
cap809299v1	cable gland ade 1f2	ss.	type 11-2'',    φ35-48 mm  , l=29.2 mm,
cap809404v1	cable gland ade 1f2	np.	type 13-2 1/2'',    φ50-62.5 mm  , l=42.5 mm,
cap809409v1	cable gland ade 1f2	ss.	type 13-2 1/2'',    φ50-62.5 mm  , l=42.5 mm,
cap809504v1	cable gland ade 1f2	np.	type 15-3'',    φ66-78 mm  , l=44 mm,
cap809509v1	cable gland ade 1f2	ss.	type 15-3'',    φ66-78 mm  , l=44 mm,
cap809594v1	cable gland ade 1f2	np.	type 14-3'',    φ58-74 mm  , l=44 mm,
cap809599v1	cable gland ade 1f2	ss.	type 14-3'',    φ58-74 mm  , l=44 mm,
cap809604v1	cable gland ade 1f2	np.	type 16-3 1/2'',    φ75-92 mm  , l=45.2 mm,
cap809609v1	cable gland ade 1f2	ss.	type 16-3 1/2'',   φ75-92 mm  , l=45.2 mm,
cap809704v1	cable gland ade 1f2	np.	type 17-4'',    φ82-104 mm  , l=46.5 mm,
cap809709v1	cable gland ade 1f2	ss.	type 17-4'',    φ82-104 mm  , l=46.5 mm,
