产品简介
reiku机器人管线包球形钳夹（ball joint jaws）
产品价格：￥
上架日期：2024-11-07 18:46:13
产地：德国
发货地：上海
供应数量：不限
最少起订：1只
浏览量：4
资料下载：暂无资料下载
其他下载：暂无相关下载
详细说明

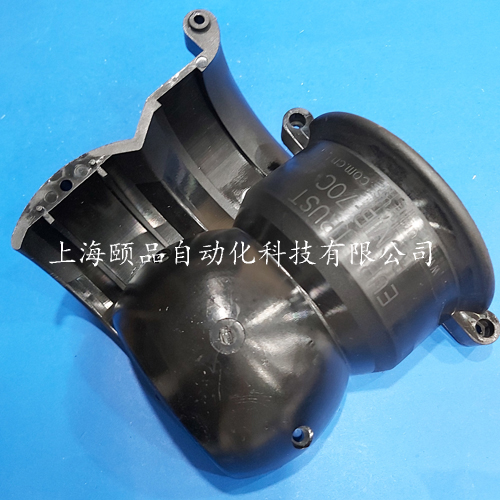

reiku机器人管线包球形钳夹（ball joint jaws）
reiku球形钳夹（ball joint jaws）
德国reiku机器人管线包球形钳夹（ball joint jaws）
comb jaws are available for 70mm conduit size only. the comb jaw set is used at the termination point when a custom cablestar grommet is not being used. the comb jaw has “teeth” that enable the use of a wire/cable tie to secure the cables or hoses against lateral movement once they exit the conduit. the comb jaw is the only jaw set that does not move radially inside the gripping clamp as instead held against any orbital rotation so that the cable ties do not put pressure or cut into the cables or hoses
end jaws are available for 70mm conduit size only. the end jaw set is used at the termination point when a custom cablestar grommet is not being used. the end jaw set is profiled on one side with a smooth radius edge that is designed to provide a nice surface for the cables and hoses to rub against after they exit the conduit.
reiku sliding jaws / reiku sliding jaws/reiku ball joint jaws
reiku代理商：上海颐品自动化科技有限公司
reiku法兰盘，reiku分线头，reiku中间内夹，reiku直通接头和内夹 reiku代理商：上海颐品自动化科技有限公司
关键词：reiku尼龙软管，reiku机器人尼龙软管，德国reiku-pa12尼龙软管
reiku尼龙软管接头，reiku尼龙软管固定座，reiku防撞块，reiku星型分线头
reiku尼龙软管，reiku编织网管，reiku机器人软管，reiku管夹支架，
reiku防撞块，reiku尼龙软管接头，reiku尼龙固定座，reiku尼龙软管
the gripping clamp’s function is dictated by the type of jaw set that is inserted into the clamp. the gripping clamp can hold the conduit in place allowing no lateral movement or the gripping clamp can be used as a “halo” and the conduit can move laterally. all of the jaw sets rotate radially 360° inside the gripping clamp.
ball joint jaws
ball joint jaws have a recessed elliptical channel that is designed to accept the radius profile for a conduit protectors. once the protector is seated inside the ball joint jaw the conduit now has plus or minus 15° of mobility inside the gripping clamp assembly.
* all of the reiku jaw sets (except comb jaws) rotate in an orbital/radial direction inside the gripping clamp in order to prevent/ remove torsion load.
| part no.球形钳夹 | quantity | |
|---|---|---|
| pakgb-36 | 1 | |
| pakgb-52 | 1 | |
| pokgb-70 | 1 |
德国reiku机器人管线包组合内夹（comb jaws）
reiku sliding jaws / reiku sliding jaws/reiku ball joint jaws/reiku comb jaws
reiku代理商：上海颐品自动化科技有限公司
reiku法兰盘，reiku分线头，reiku中间内夹，reiku直通接头和内夹
reiku代理商：上海颐品自动化科技有限公司
关键词：reiku尼龙软管，reiku机器人尼龙软管，德国reiku-pa12尼龙软管
reiku尼龙软管接头，reiku尼龙软管固定座，reiku防撞块，reiku星型分线头
reiku尼龙软管，reiku编织网管，reiku机器人软管，reiku管夹支架，
reiku防撞块，reiku尼龙软管接头，reiku尼龙固定座，reiku尼龙软管
comb jaws are available for 70mm conduit size only. the comb jaw set is used at the termination point when a custom cablestar grommet is not being used. the comb jaw has “teeth” that enable the use of a wire/cable tie to secure the cables or hoses against lateral movement once they exit the conduit. the comb jaw is the only jaw set that does not move radially inside the gripping clamp as instead held against any orbital rotation so that the cable ties do not put pressure or cut into the cables or hoses
| part no.组合内夹 | quantity | |
|---|---|---|
| pakkb-70 | 10 |
德国reiku机器人管线包尾端内夹（end jaws）
reiku sliding jaws / reiku sliding jaws/reiku ball joint jaws/reiku comb jaws
reiku代理商：上海颐品自动化科技有限公司
reiku法兰盘，reiku分线头，reiku中间内夹，reiku直通接头和内夹 reiku代理商：上海颐品自动化科技有限公司
关键词：reiku尼龙软管，reiku机器人尼龙软管，德国reiku-pa12尼龙软管
reiku尼龙软管接头，reiku尼龙软管固定座，reiku防撞块，reiku星型分线头
reiku尼龙软管，reiku编织网管，reiku机器人软管，reiku管夹支架，
reiku防撞块，reiku尼龙软管接头，reiku尼龙固定座，reiku尼龙软管
end jaws are available for 70mm conduit size only. the end jaw set is used at the termination point when a custom cablestar grommet is not being used. the end jaw set is profiled on one side with a smooth radius edge that is designed to provide a nice surface for the cables and hoses to rub against after they exit the conduit.
| part no. | reiku尾端内夹 | quantity |
|---|---|---|
| paebb-70 | end jaw | 10 |
