reiku机器人管线包弹簧支架（spring retraction ）
产品价格：￥
上架日期：2024-11-07 19:00:38
产地：德国
发货地：上海
供应数量：不限
最少起订：1只
浏览量：5
资料下载：暂无资料下载
其他下载：暂无相关下载
详细说明
reiku机器人管线包弹簧支架（spring retrb ）
reiku弹簧支架（spring retrb ）
德国reiku机器人管线包弹簧支架（spring retrb components）
reiku springs provided guided yet flexibility mobility control for retrb components.
part no.descriptionspring length
德国reiku机器人管线包弹簧支架（spring retrb components）
reiku spring retrb components
reiku代理商：上海颐品自动化科技有限公司
reiku代理商：上海颐品自动化科技有限公司
关键词：reiku尼龙软管，reiku机器人尼龙软管，德国reiku-pa12尼龙软管
reiku尼龙软管接头，reiku尼龙软管固定座，reiku防撞块，reiku星型分线头
reiku尼龙软管，reiku编织网管，reiku机器人软管，reiku管夹支架，
reiku防撞块，reiku尼龙软管接头，reiku尼龙固定座，reiku尼龙软管
reiku法兰盘，reiku分线头，reiku中间内夹，reiku直通接头和内夹
reiku offers a multitude of spring retrb components in order to control the b of the conduit. in high dynamic robotics applications it is imperative that the conduit be long enough to service all of the robots’ moves, having a reiku spring retrb system will keep the service loop of conduit in a safe area behind the robot when not required.

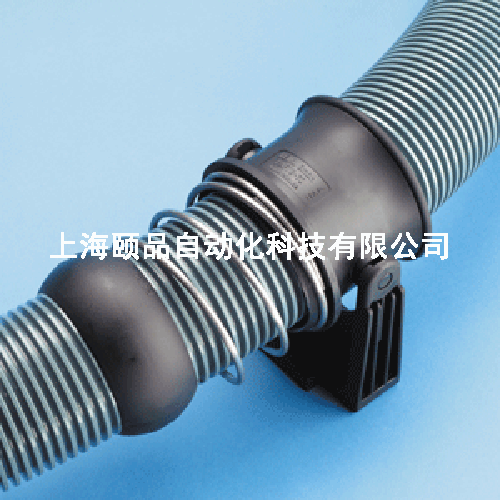

all of the reiku spring holders act like a “halo” allowing the conduit to pass through them as the conduit moves back and forth to service the movements of the robot. at the rear of the spring holders there is a groove where the spring is attached and then a paprb style of reiku protector is attached to the conduit behind the spring. when the robot extends to bs that require more conduit, it pulls the conduit from a “safe area” behind the robot. when the conduit is pulled the protector which is locked onto the corrugations of the conduit engages on the rear of the spring creating a load and once the robot returns to a b where this additional length of conduit is not required the conduit returns back to the rear of the robot.
pafhb / pofhb style spring holder
this our most widely used version of a spring holder which is held in place on with a gripping clamp. this style of spring holder “guides” the conduit through the spring holder on a level trajectory moving the conduit back and forth laterally on a fixed horizontal plane.| part no. | description | quantity |
|---|---|---|
| pafhb-23/29 | spring holder for use with 17, 23 & 29 mm conduits. used with passb-29k gripping clamp. | 10 |
| pofhb-36/36 | spring holder for use with 29 & 36 mm conduits. used with passb-36s or passb-36k gripping clamp. | 10 |
| pafhb-70 | spring holder for use with 52 & 70 mm conduits. used with passb-70m or passb-70k gripping clamp. | 10 |
paftb style spring holder
this version of spring holder is held in place by a rotary fork which has mounting holes located on each side as indicated by the red arrows in the picture above. the paftb spring holder has round locking pins that seat inside the rotary fork and this version of spring holder is now able to pivot on these pins and move up and down in a see-saw type of motion.| part no. | quantity |
|---|---|
| paftb-32 | 10 |
| paftb-70 | 10 |
pafkb globe spring holder
this “globe” style of is also held in b by a gripping clamp but this globe style have spring holder has a rounded profile so that it is able to move /- 12° inside the clamp allowing the conduit to pass through the halo at various different angles.| part no. | quantity |
|---|---|
| pafkb-52 | 10 |
| pafkb-70 | 10 |
springs
part no.descriptionspring length
| dfst-36new | spring for use with 29 & 36mm conduits. used with po fhb-36/36 spring holder | 36” |
| dfst-5270 | conical spring for use with 52mm conduit only. used with any 70mm spring holder. | 30” |
| dfst-30 | spring for use with 70mm conduit only. used with any 70mm spring holder | 30” |
| dfst-237695 | spring for use with 70mm conduit only. used with any 70mm spring holder | 46” |
