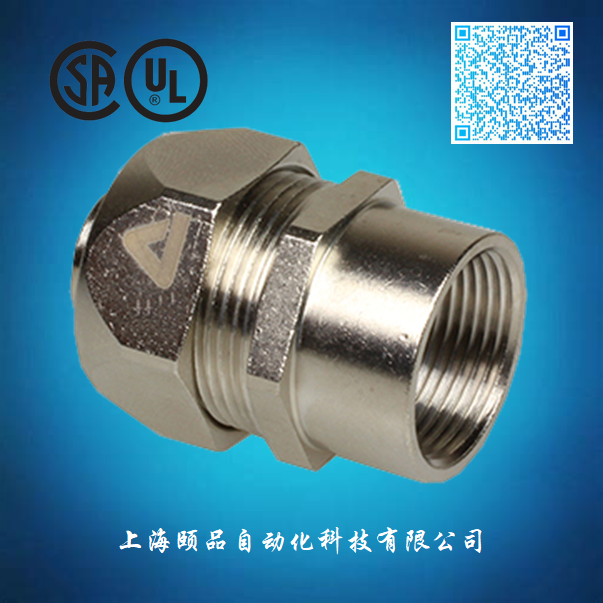

flexible conduit connector nickel plated brass ul listed
ul认证金属软管接头（iso-m thread 180°）
anamet代理商：上海颐品自动化科技有限公司
anacondaanaconda is the brand name of our flexible conduits and matching anaconda fittings. the anaconda conduits are available in a wide variety of materials, diameters and can be with or without cover. standard nickel plated brass fittings can be used with all types of anaconda sealtitesealtite is the brand name of the type of conduit that is used to protect wires against different circumstances. (except cnp). this anaconda fitting is an universal fitting and offers excellent corrosion protection in combination with a nice appearance. because of the ul & csa approvals the fittings are also suitable for export projects outside europe.
material：flexible conduit connector nickel plated brass
construction：nickel plated brass fitting
nickel plated brass fitting, consisting of 4 parts (counter nut, clamping ring, ferrule and body).
special approvals: ul-514b and csa c 22.2 (combined ul / csa cul) file # e 234207).
suitable for use in hazardous environments according to nec:
- article 501.10 (b) (2) class i, division 2.
- article 502.10 (a) (2) and (b) (2). class ii, division 1 and 2.
- article 503.10 (a) (3) and (b). class iii, division 1 and 2
colour：metal
temperature：-45 °c till 105 ºc
protection class：ip 67
| thread 螺纹规格 | conduit 软管内径 | min. internal bore | dimensions in mm | standard package | article number | weight 重量 | ||||||
| 上海颐品 | size | mm | a | b | c | d | e | f | g |
|
上海颐品 | (kg/100) |
| m12 x 1,5 | 1/4" | 5,2 | 33 | 10 | 22 | - | 20 | - |
|
10 | 812.012.1 | 4,8 |
| m20 x 1,5 | 5/16" | 8,3 | 36 | 13 | 26 | - | 24 | - |
|
10 | 812.014.1 | 5,5 |
| m16 x 1,5 | 5/16" | 8,3 | 35 | 12 | 26 | - | 24 | - |
|
10 | 812.015.1 | 5,2 |
| m16 x 1,5 | 3/8" | 10,2 | 35 | 12 | 26 | - | 24 | - |
|
10 | 812.016.1 | 4,8 |
| m20 x 1,5 | 3/8" | 10,2 | 36 | 13 | 26 | - | 24 | - |
|
10 | 812.017.1 | 5,1 |
| m20 x 1,5 | 1/2" | 13,9 | 37 | 13 | 29 | - | 27 | - |
|
10 | 812.020.1 | 5,9 |
| m25 x 1,5 | 3/4" | 18,5 | 40 | 15 | 35 | - | 33 | - |
|
5 | 812.025.1 | 7,9 |
| m32 x 1,5 | 1" | 23,8 | 46 | 15 | 45 | - | 43 | - |
|
5 | 812.032.1 | 17,5 |
| m40 x 1,5 | 1.1/4" | 31,8 | 52 | 16 | 54 | - | 52 | - |
|
2 | 812.040.1 | 27,9 |
| m50 x 1,5 | 1.1/2" | 36,8 | 56 | 18 | 63 | - | 60 | - |
|
2 | 812.050.1 | 42,3 |
| m63 x 1,5 | 2" | 47,8 | 66 | 20 | 77 | - | 74 | - |
|
2 | 812.063.1 | 73,5 |
